Razor Barbed Wire

Razor wire fence also named razor wire, razor barbed wire. It is a new type of protection fence. With the character of beautiful, economical, secure fencing, construction of facilities, etc.

    Common specification
  • Material: High quality steel wire.
  • Blade: Galvanized steel.
  • Process: Galvanized - stamping.
  • Model: BTO-22(Other model can be made).
  • Size: 133*1580
  • Mesh opening: 22*28cm
  • Roll diameter size: 25cm、30cm、40cm、45cm、55cm、60cm, etc.

Features: Razor barbed wire is a new developed fencing mesh which has the characteristics of a good deterrence effect, beautiful appearance, easily constructed, economical and practical, anti-corrosion, anti-ageing, anti-solarization and durable.

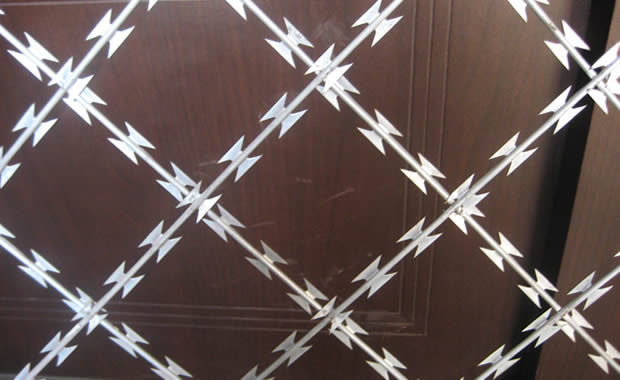

Process: Galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades. The products offer beautiful appearance, economic cost, good frightening result and easy installation. Sharp blades coming in the form of concertina by buckles bring very good result of frightening and stopping to the aggressive perimeter intruders. Razor wire is divided into spiral, straight line and crossed spiral types.

Application: Widely used in military field, prisons, detention houses, government buildings and other national security facilities. Also fencing of residences, villa wall and windows, express way, railway, national border lines, etc.

Reference Number Blade Style Thickness Wire Dia Barb Length Barb Width Barb spacing
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5 28 15 45±1
BTO-30 0.5±0.05 2.5 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2

Common specification

Outside Diameter
Turns
Standard Length
Production Type
Note
450mm
33
8M
CBT-60.65
Lap
500mm
41
10M
CBT-60.65
Lap
700mm
41
10M
CBT-60.65
Lap
960mm
53
13M
CBT-60.65
Lap
450mm
112
17m
BTO-12.15.20.22
Cross Type
500mm
102
16M
BTO-12.15.20.22
Cross Type
600mm
86
14M
BTO-12.15.20.22
Cross Type
700mm
72
12M
BTO-12.15.20.22
Cross Type
800mm
64
10M
BTO-12.15.20.22
Cross Type
960mm
52
9M
BTO-12.15.20.22
Cross Type



If you need to consult the price, please contact the business department by e-mail:

sales@heweiwiremesh.com

When you contact us, please provide your detail requirements.
That will help us give you a valid quotation.
